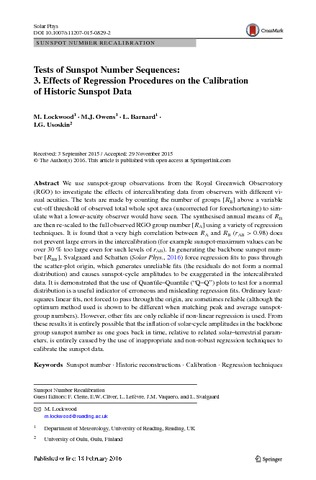

Tests of sunspot number sequences: 3. Effects of regression procedures on the calibration of historic sunspot data

Lockwood, M. ORCID: https://orcid.org/0000-0002-7397-2172, Owens, M. J. ORCID: https://orcid.org/0000-0003-2061-2453, Barnard, L. ORCID: https://orcid.org/0000-0001-9876-4612 and Usoskin, I. G. (2016) Tests of sunspot number sequences: 3. Effects of regression procedures on the calibration of historic sunspot data. Solar Physics, 291 (9). pp. 2829-2841. ISSN 0038-0938 doi: 10.1007/s11207-015-0829-2

Abstract/Summary

We use sunspot group observations from the Royal Greenwich Observatory (RGO) to investigate the effects of intercalibrating data from observers with different visual acuities. The tests are made by counting the number of groups RB above a variable cut-off threshold of observed total whole-spot area (uncorrected for foreshortening) to simulate what a lower acuity observer would have seen. The synthesised annual means of RB are then re-scaled to the full observed RGO group number RA using a variety of regression techniques. It is found that a very high correlation between RA and RB (rAB > 0.98) does not prevent large errors in the intercalibration (for example sunspot maximum values can be over 30 % too large even for such levels of rAB). In generating the backbone sunspot number (RBB), Svalgaard and Schatten (2015, this issue) force regression fits to pass through the scatter plot origin which generates unreliable fits (the residuals do not form a normal distribution) and causes sunspot cycle amplitudes to be exaggerated in the intercalibrated data. It is demonstrated that the use of Quantile-Quantile (“Q  Q”) plots to test for a normal distribution is a useful indicator of erroneous and misleading regression fits. Ordinary least squares linear fits, not forced to pass through the origin, are sometimes reliable (although the optimum method used is shown to be different when matching peak and average sunspot group numbers). However, other fits are only reliable if non-linear regression is used. From these results it is entirely possible that the inflation of solar cycle amplitudes in the backbone group sunspot number as one goes back in time, relative to related solar-terrestrial parameters, is entirely caused by the use of inappropriate and non-robust regression techniques to calibrate the sunspot data.

Item Type	Article
URI	https://reading-clone.eprints-hosting.org/id/eprint/48000
Item Type	Article
Refereed	Yes
Divisions	Science > School of Mathematical, Physical and Computational Sciences > Department of Meteorology
Publisher	Springer Verlag
