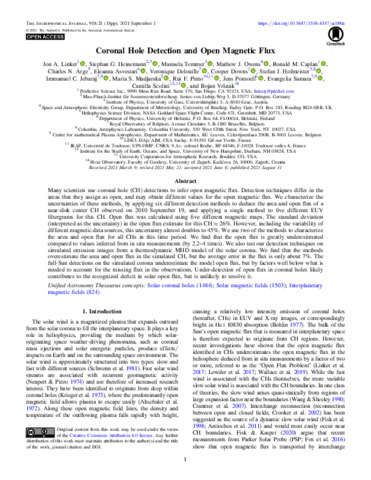

Coronal hole detection and open magnetic flux

Linker, J. A. ORCID: https://orcid.org/0000-0003-1662-3328, Heinemann, S. G. ORCID: https://orcid.org/0000-0002-2655-2108, Temmer, M. ORCID: https://orcid.org/0000-0003-4867-7558, Owens, M. J. ORCID: https://orcid.org/0000-0003-2061-2453, Caplan, R. M. ORCID: https://orcid.org/0000-0002-2633-4290, Arge, C. N., Asvestari, E. ORCID: https://orcid.org/0000-0002-6998-7224, Delouille, V. ORCID: https://orcid.org/0000-0001-5307-8045, Downs, C. ORCID: https://orcid.org/0000-0003-1759-4354, Hofmeister, S. J. ORCID: https://orcid.org/0000-0001-7662-1960, Jebaraj, I. C. ORCID: https://orcid.org/0000-0002-0606-7172, Madjarska, M. S. ORCID: https://orcid.org/0000-0001-9806-2485, Pinto, R. F. ORCID: https://orcid.org/0000-0001-8247-7168, Pomoell, J. ORCID: https://orcid.org/0000-0003-1175-7124, Samara, E. ORCID: https://orcid.org/0000-0002-7676-9364, Scolini, C. ORCID: https://orcid.org/0000-0002-5681-0526 and Vršnak, B. (2021) Coronal hole detection and open magnetic flux. The Astrophysical Journal, 918 (1). ISSN 0004-637X doi: 10.3847/1538-4357/ac090a

Abstract/Summary

Many scientists use coronal hole (CH) detections to infer open magnetic flux. Detection techniques differ in the areas that they assign as open, and may obtain different values for the open magnetic flux. We characterize the uncertainties of these methods, by applying six different detection methods to deduce the area and open flux of a near-disk center CH observed on 2010 September 19, and applying a single method to five different EUV filtergrams for this CH. Open flux was calculated using five different magnetic maps. The standard deviation (interpreted as the uncertainty) in the open flux estimate for this CH ≈ 26%. However, including the variability of different magnetic data sources, this uncertainty almost doubles to 45%. We use two of the methods to characterize the area and open flux for all CHs in this time period. We find that the open flux is greatly underestimated compared to values inferred from in situ measurements (by 2.2–4 times). We also test our detection techniques on simulated emission images from a thermodynamic MHD model of the solar corona. We find that the methods overestimate the area and open flux in the simulated CH, but the average error in the flux is only about 7%. The full-Sun detections on the simulated corona underestimate the model open flux, but by factors well below what is needed to account for the missing flux in the observations. Under-detection of open flux in coronal holes likely contributes to the recognized deficit in solar open flux, but is unlikely to resolve it.

Item Type	Article
URI	https://reading-clone.eprints-hosting.org/id/eprint/99992
Item Type	Article
Refereed	Yes
Divisions	Science > School of Mathematical, Physical and Computational Sciences > Department of Meteorology
Publisher	American Astronomical Society
Download/View statistics	View download statistics for this item
