Bioremediation potential of Cd by transgenic yeast expressing a metallothionein gene from Populus trichocarpa

Lists

Download

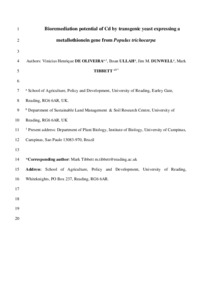

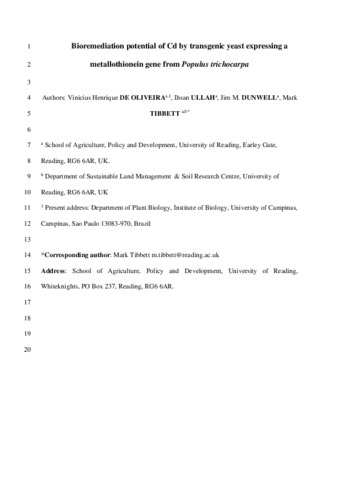

[thumbnail of De Oliveira et al 2020 - revised 5th June.pdf]

Preview

De Oliveira et al 2020 - revised 5th June.pdf - Accepted Version (843kB) | Preview

Available under license: Creative Commons Attribution Non-commercial No Derivatives

Tools

De Oliveira, V. H., Ullah, I. ORCID: https://orcid.org/0000-0002-9367-6741, Dunwell, J. M. ORCID: https://orcid.org/0000-0003-2147-665X and Tibbett, M. ORCID: https://orcid.org/0000-0003-0143-2190 (2020) Bioremediation potential of Cd by transgenic yeast expressing a metallothionein gene from Populus trichocarpa. Ecotoxicology and Environmental Safety, 202. 110917. ISSN 0147-6513 doi: 10.1016/j.ecoenv.2020.110917

Abstract/Summary

Cadmium (Cd) is an extremely toxic environmental pollutant with high mobility in soils, which can contaminate groundwater, increasing its risk of entering the food chain. Yeast biosorption can be a low-cost and effective method for removing Cd from contaminated aqueous solutions. We transformed wild-type Saccharomyces cerevisiae (WT) with two versions of a Populus trichocarpa gene (PtMT2b) coding for a metallothionein: one with the original sequence (PtMT2b ‘C’) and the other with a mutated sequence, with an amino acid substitution (C3Y, named here: PtMT2b ‘Y’). WT and both transformed yeasts were grown under Cd stress, in agar (0; 10; 20; 50 µM Cd) and liquid medium (0; 10; 20 µM Cd). Yeast growth was assessed visually and by spectrometry OD600. Cd removal from contaminated media and intracellular accumulation were also quantified. PtMT2b ‘Y’ was also inserted into mutant strains: fet3fet4, zrt1zrt2 and smf1, and grown under Fe-, Zn- and Mn-deficient media, respectively. Yeast strains had similar growth under 0 µM, but differed under 20 µM Cd, the order of tolerance was: WT < PtMT2b ‘C’ < PtMT2b ‘Y’, the latter presenting 37% higher growth than the strain with PtMT2b ‘C’. It also extracted ~80% of the Cd in solution, and had higher intracellular Cd than WT. Mutant yeasts carrying PtMT2b ‘Y’ had slightly higher growth in Mn- and Fe-deficient media than their non-transgenic counterparts, suggesting the transgenic protein may chelate these metals. S. cerevisiae carrying the altered poplar gene offers potential for bioremediation of Cd from wastewaters or other contaminated liquids.

Altmetric Badge

Item Type	Article
URI	https://reading-clone.eprints-hosting.org/id/eprint/91328
Item Type	Article
Refereed	Yes
Divisions	Life Sciences > School of Agriculture, Policy and Development > Department of Crop Science
Publisher	Elsevier
Download/View statistics	View download statistics for this item

Download Statistics

Downloads

Downloads per month over past year

Deposit Details

Date Deposited:	23 Jun 2020 14:09	Date item deposited into CentAUR
Last Modified:	23 Jun 2024 04:57	Date item last modified

References

Abdolali A., Ngo H.H., Guo W., Lu S., Chen S.S., Nguyen N.C., Zhang X., Wang J., Wu Y., 2016. A breakthrough biosorbent in removing heavy metals: Equilibrium, kinetic, thermodynamic and mechanism analyses in a lab-scale study. Sci. Total. Environ. 542, 603–611. http://dx.doi.org/10.1016/j.scitotenv.2015.10.095 Alloway B.J., 2013. Heavy metals in soils, 3rd edn. Springer, Netherlands. 10.1007/978-94-007-4470-7 Amirnia S., Ray M.B., Margaritis A., 2015. Heavy metals removal from aqueous solutions using Saccharomyces cerevisiae in a novel continuous bioreactor–biosorption system. Chem. Eng. J. 264, 863–872. http://dx.doi.org/10.1016/j.cej.2014.12.016 Benatti M.R., Yookongkaew N., Meetam M., Guo W.J., Punyasuk N., AbuQamar S., Goldsbrough P., 2014. Metallothionein deficiency impacts copper accumulation and redistribution in leaves and seeds of Arabidopsis. New. Phytol. 202, 940–951. https://doi.org/10.1111/nph.12718 Beni A.A., Esmaeili A., 2020. Biosorption, an efficient method for removing heavy metals from industrial effluents: A Review. Environ. Technol. Innov. 17, 100503. https://doi.org/10.1016/j.eti.2019.100503 Brady D., Duncan JR., 1994. Bioaccumulation of metal cations by Saccharomyces cerevisiae. Appl. Mibrobiol. Biot. 41, 149–154. https://doi.org/10.1007/BF00166098 Bulgarelli R.G., Araujo P., Tezotto T., Mazzafera P., Andrade S.A.L., 2016. Expression of metallothionein genes in coffee leaves in response to the absence or excess of Cu and Zn. Theor Exp. Plant. Phys. 28, 371–383. https://doi.org/10.1007/s40626-016-0075-5 Bulgariu D., Bulgariu L., 2016. Potential use of alkaline treated algae waste biomass as sustainable biosorbent for clean recovery of cadmium(II) from aqueous media: batch and column studies. J. Clean. Prod. 112, 4525-4533. https://doi.org/10.1016/j.jclepro.2015.05.124 Chen C., Wang J., 2008. Removal of Pb2+, Ag+, Cs+ and Sr2+ from aqueous solution by brewery’s waste biomass. J. Hazard. Mater. 151, 65–70. https://doi.org/10.1016/j.jhazmat.2007.05.046 Cismowski M.J., Narula S.S., Armitage I.M., Chernaik M.L., Huang PC., 1991. Mutation of invariant cysteines in mammalian metallothionein alters metal binding capacity, cadmium resistance and 113Cd NMR spectrum. J. Biol. Chem. 266, 24390–24397. Cobbett C., Goldsbrough P., 2002. Phytochelatins and metallothioneins: roles in heavy metal detoxification and homeostasis. Ann. R. Plant. Biol. 53, 159–182. https://doi.org/10.1146/annurev.arplant.53.100301.135154 De Oliveira V.H., Tibbett M., 2018. Tolerance, toxicity and transport of Cd and Zn in Populus trichocarpa. Environ. Exp. Bot. 155, 281–292. https://doi.org/10.1016/j.envexpbot.2018.07.011 De Oliveira V.H., Ullah I., Dunwell J.M., Tibbett M., 2020. Mycorrhizal symbiosis induces divergent patterns of transport and partitioning of Cd and Zn in Populus trichocarpa. Environ. Exp. Bot. 171, 103925. https://doi.org/10.1016/j.envexpbot.2019.103925 Domènech J., Mir G., Huguet G., Capdevila M., Molinas M., Atrian S., 2006. Plant metallothionein domains: functional insight into physiological metal binding and protein folding. Biochimie 88, 583–593. https://doi.org/10.1016/j.biochi.2005.11.002 Farcasanu I.C., Ruta L.L., 2017. Metallothioneins, Saccharomyces cerevisiae, and heavy metals: a biotechnology triad? In: Lucas C., Pais C. (Eds) Old Yeasts - New Questions. InTech Open, pp 21–39. http://dx.doi.org/10.5772/intechopen.70340 Goksungur Y., Uren S., Guvenc U., 2005. Biosorption of cadmium and lead ions by ethanol treated waste baker’s yeast biomass. Bioresource Technol. 96, 103–109. https://doi.org/10.1016/j.biortech.2003.04.002 Gu C.S., Liu L.Q., Zhao Y.H., Deng Y.M., Zhu X.D., Huang S.Z., 2014. Overexpression of Iris lactea var. chinensis metallothionein llMT2a enhances cadmium tolerance in Arabidopsis thaliana. Ecotox. Environ. Safe. 105, 22-28. http://dx.doi.org/10.1016/j.ecoenv.2014.04.002 Guo W.J., Meetam M., Goldsbrough P.B., 2008. Examining the specific contributions of individual Arabidopsis metallothioneins to copper distribution and metal tolerance. Plant Physiol. 146, 1697–1706. https://doi.org/10.1104/pp.108.115782 Hassinen V., Vallinkoski V.M., Issakainen S., Tervahauta A., Karenlampi S., Servomaa K., 2009. Correlation of foliar MT2b expression with Cd and Zn concentrations in hybrid aspen (Populus tremula x tremuloides) grown in contaminated soil. Environ. Pollut. 157, 922–930. https://doi.org/10.1016/j.envpol.2008.10.023 Hassinen V.H., Tervahauta A.I., Schat H., Karenlampi S.O., 2011. Plant metallothioneins – metal chelators with ROS scavenging activity? Plant Biol. 13, 225–232. https://doi.org/10.1111/j.1438-8677.2010.00398.x He S., He Z., Yang X., Stoffella P.J., Baligar V.C., 2015. Soil biogeochemistry, plant physiology, and phytoremediation of cadmium-contaminated soils. In: Sparks D.L. (Ed.) Advances in Agronomy. Elsevier Inc, Oxford, pp 135–225. https://doi.org/10.1016/bs.agron.2015.06.005 Hosiner D., Gerber S., Lichtenberg-Frate H., Glaser W., Schuller C., Klipp E., 2014. Impact of acute metal stress in Saccharomyces cerevisiae. Plos One. 9:e83330. https://doi.org/10.1371/journal.pone.0083330 Hu P., Sorensen C., Gross M.L., 1995. Influences of peptide side chains on the metal ion binding site in metal ion-cationized peptides: participation of aromatic rings in metal chelation. J. Am. Soc. Mass. Spectr. 6, 1079–1085. https://doi.org/10.1016/1044-0305(95)00549-8 Jaakola L., Pirtilla M., Halonen M., Hohtola A., 2001. Isolation of high quality RNA from Bilberry (Vaccinium myrtillus L.) fruit. Mol. Biot. 19, 201–203. https://doi.org/10.1385/MB:19:2:201 Jamali M., Kazi T.G., Arain M.B., Afridi H.I., Jalbani N., Kandhro G.A., Shah A.Q., Baig J.A., 2009. Heavy metal accumulation in different varieties of wheat (Triticum aestivum L.) grown in soil amended with domestic sewage sludge. J. Hazard. Mater. 164, 1386–1391. https://doi.org/10.1016/j.jhazmat.2008.09.056 Janssen M.P.M., Ma W.C., Van Straalen N.M., 1993. Biomagnification of metals in terrestrial ecosystems, Sci. Total. Environ. 134, 511–524. https://doi.org/10.1016/S0048-9697(05)80053-1 Jin S., Sun D., Wang J., Li Y., Wang X., Liu S., 2014. Expression of rgMT gene, enconding for a rice metallothionein-like protein in Saccharomyces cerevisiae and Arabidopsis thaliana. J. Genet. 93, 709–718. Joutey N.T., Bahafid W., Sayel H., Ghachtouli N.E., 2013. Biodegradation: involved microorganisms and genetically engineered microorganisms. In: Chamy R. (Ed.) Biodegradation - Life of Science. InTech, Rijeka, pp 289–320. http://dx.doi.org/10.5772/56194 Karathia H., Vilaprinyo E., Sorribas A., Alves R., 2011. Saccharomyces cerevisiae as a model organism: a comparative study. Plos One 6:e16015. https://doi.org/10.1371/journal.pone.0016015 Khan M.A., Khan S., Khan A., Alam M., 2017. Soil contamination with cadmium, consequences and remediation using organic amendments. Sci. Total Environ. 601–602, 1591–1605. http://dx.doi.org/10.1016/j.scitotenv.2017.06.030 Kim N., Park M., Park D., 2015. A new efficient forest biowaste as biosorbent for removal of cationic heavy metals. Bioresource Technol. 175, 629–632. http://dx.doi.org/10.1016/j.biortech.2014.10.092 Kim Y.O., Patel D.H., Lee D.S., Song Y., Bae H.J., 2011. High cadmium-binding ability of a novel Colocasia esculenta metallothionein increases cadmium tolerance in Escherichia coli and tobacco. Biosci. Biotech. Bioch. 75, 1912–1920. https://doi.org/10.1271/bbb.110289 Kobayashi K., Kuroda J., Shibata N., Hasegawa T., Seko Y., Satoh M., Tohyama C., Takano H., Imura N., Sakabe K., Fujishiro H., Himeno S., 2007. Induction of metallothionein by manganese is completely dependent on interleukin-6 production. J. Pharmacol. Exp. Ther. 320, 721–727. https://doi.org/10.1124/jpet.106.112912 Kohler A., Blaudez D., Chalot M., Martin F., 2004. Cloning and expression of multiple metallothioneins from hybrid poplar. New Phytol. 164, 83–93. https://doi.org/10.1111/j.1469-8137.2004.01168.x Kulshreshtha S., 2013. Genetically engineered microorganisms: a problem solving approach for bioremediation. J. Bioremediat. Biodegrad. 4:e133.7. doi:10.4172/2155-6199.1000e133 Lei M., Zhang Y., Khan S., Qin P., Liao B., 2010. Pollution, fractionation, and mobility of Pb, Cd, Cu, and Zn in garden and paddy soils from a Pb/Zn mining area. Environ. Monit. Assess. 168, 215–222. https://doi.org/10.1007/s10661-009-1105-4 Ma J.C., Dougherty D., 1997. The Cation−π Interaction. Chem. Rev. 97, 1303–1324. https://doi.org/10.1021/cr9603744 Machado M.D., Santos M.S.F., Gouveia C., Soares H.M.V.M., Soares E.V., 2008. Removal of heavy metals using a brewer’s yeast strain of Saccharomyces cerevisiae: the flocculation as a separation process. Bioresource Technol. 99, 2107–2115. https://doi.org/10.1016/j.biortech.2007.05.047 Mahadevi A.S., Sastry G.N., 2013. Cation−π interaction: its role and relevance in chemistry, biology, and material science. Chem. Rev. 113, 2100–2138. https://doi.org/10.1021/cr300222d Marques P.A.S.S., Rosa M.F., Pinheiro H.M., 2000. pH effects on the removal of Cu2+, Cd2+ and Pb2+ from aqueous solution by waste brewery biomass. Bioprocess. Eng. 23, 135–141. https://doi.org/10.1007/PL00009118 Mirlean N., Roisenberg A., 2006. The effect of emissions of fertilizer production on the environment contamination by cadmium and arsenic in southern Brazil. Environ. Pollut. 143, 335–340. https://doi.org/10.1016/j.envpol.2005.11.022 Nguyen H., Rineau F., Vangronsveld J., Cuypers A., Colpaert J.V., Ruytinx J., 2017. A novel, highly conserved metallothionein family in basidiomycete fungi and characterization of two representative SlMTa and SlMTb genes in the ectomycorrhizal fungus Suillus luteus. Environ. Microbiol. 19, 2577–2587. https://doi.org/10.1111/1462-2920.13729 Oliveira R.P.S., Basso L.C., Junior A.P., Penna T.C.V., Borghi M.D., Converti A., 2012. Response of Saccharomyces cerevisiae to cadmium and nickel stress: the use of the sugar cane vinasse as a potential mitigator. Biol. Trace Elem. Res. 145, 71–80. https://doi.org/10.1007/s12011-011-9156-0 Pankiewicz U., Sujka M., Jamroz J., 2015. Bioaccumulation of the selected metal ions in Saccharomyces cerevisiae cells under treatment of the culture with Pulsed Electric Field (PEF). J. Membrane Biol. 248, 943–949. https://doi.org/10.1007/s00232-015-9844-3 Ruiz O.N., Alvarez D., Gonzalez-Ruiz G., Torres C., 2011. Characterization of mercury bioremediation by transgenic bacteria expressing metallothionein and polyphosphate kinase. BMC Biotechnol. 11, 1–8. https://doi.org/10.1186/1472-6750-11-82 Ruta .LL., Lin Y.F., Kissen R., Nicolau I., Neagoe A.D., Ghenea S., Bones A.M., Farcasanu I.C., 2017. Anchoring plant metallothioneins to the inner face of the plasma membrane of Saccharomyces cerevisiae cells leads to heavy metal accumulation. Plos One 12:e0178393. https://doi.org/10.1371/journal.pone.0178393 Ruttkay-Nedecky B., Nejdl L., Gumulec J., Zitka O., Masarik M., Eckschlager T., Stiborova M., Adam V., Kizek R., 2013. The role of metallothionein in oxidative stress. Int. J. Mol. Sci. 14, 6044–6066. https://doi.org/10.3390/ijms14036044 Schothorst J., Van Zeebroeck G., Thevelein J.M., 2017. Identification of Ftr1 and Zrt1 as iron and zinc micronutrient transceptors for activation of the PKA pathway in Saccharomyces cerevisiae. Microb. Cell. 4, 74–89. 10.15698/mic2017.03.561 Sheoran V., Sheoran A.S., Poonia P., 2011. Role of hyperaccumulators in phytoextraction of metals from contaminated mining sites: a review. Environ. Sci. Technol. 41, 168–214. https://doi.org/10.1080/10643380902718418 Singh S., Kang S.H., Mulchandani A., Chen W., 2008. Bioremediation: environmental clean-up through pathway engineering. Curr. Opin. Biotech. 19, 437–444. https://doi.org/10.1016/j.copbio.2008.07.012 Smolders E., Mertens J., 2013. Cadmium. In: Alloway B.J. (Ed.) Heavy metals in soils, 3rd edn. Springer, Nehterlands, pp 283–311. 10.1007/978-94-007-4470-7 Soares E.V., 2011. Flocculation in Saccharomyces cerevisiae: a review. J Appl Microbiol 110, 1–18. https://doi.org/10.1111/j.1365-2672.2010.04897.x Sriprang R., Hayashi M., Ono H., Takagi M., Hirata K., Murooka Y., 2003. Enhanced accumulation of Cd2+ by a Mesorhizobium sp. transformed with a gene from Arabidopsis thaliana coding for phytochelatin synthase. Appl. Environ. Microbiol. 69, 1791–1796. https://dx.doi.org/10.1128%2FAEM.69.3.1791-1796.2003 Stewart M., Dunlap T., Dourlain E., Grant B., McFail-Isom L., 2013. Cations form sequence selective motifs within DNA grooves via a combination of cation-pi and ion-dipole/hydrogen bond interactions. Plos One 8:e71420. https://doi.org/10.1371/journal.pone.0071420 Thorsen M., Perrone G.G., Kristiansson E., Traini M., Ye T., Dawes I.W., Nerman O., Tamas M.H., 2009. Genetic basis of arsenite and cadmium tolerance in Saccharomyces cerevisiae. BMC Genomics 10, 105. https://doi.org/10.1186/1471-2164-10-105 Ude C., Schmidt-Hager J., Findeis M., John GT., Scheper T., Beutel S., 2014. Application of an online-biomass sensor in an optical multisensory platform prototype for growth monitoring of biotechnical relevant microorganism and cell lines in single-use shake flasks. Sensors 14, 17390–17405. https://doi.org/10.3390/s140917390 Ullah I., Wang Y., Eide D.J., Dunwell J.M., 2018. Evolution, and functional analysis of Natural Resistance-Associated Macrophage Proteins (NRAMPs) from Theobroma cacao and their role in cadmium accumulation. Sci. Rep. 8:14412. https://doi.org/10.1038/s41598-018-32819-y Vandenbossche M., Dehaese A., Casetta M., Jimenez M., Traisnel M., 2015. Tyrosine: an efficient natural molecule for copper remediation. Green Mater. 3, 1–9. https://doi.org/10.1680/gmat.14.00006 Vijayaraghavan K., Balasubramanian R., 2015. Is biosorption suitable for decontamination of metal-bearing wastewaters? A critical review on the state-of-the-art of biosorption processes and future directions. J. Environ. Manage. 160, 283–296. https://doi.org/10.1016/j.jenvman.2015.06.030 Vijver M.G., Gestel C.A.M., Lanno R.P., Van Straalen N.M., Peijnenburg W.J.G.M., 2004. Internal metal sequestration and its ecotoxicological relevance: a review, Environ. Sci. Technol. 38, 4705–4712. https://doi.org/10.1021/es040354g Wang J., Chen C., 2006. Biosorption of heavy metals by Saccharomyces cerevisiae: a review. Biotechnol. Adv. 24, 427–451. https://doi.org/10.1016/j.biotechadv.2006.03.001 Wang J., Chen C., 2009. Biosorbents for heavy metals removal and their future. Biotechnol. Adv. 27, 195–226. https://doi.org/10.1016/j.biotechadv.2008.11.002 Wong H.L., Sakamoto T., Kawasaki T., Umemura K., Shimamoto K., 2004. Down-regulation of metallothionein, a reactive oxygen scavenger, by the small GTPase OsRac1 in rice. Plant Physiol. 135, 1447–1456. https://doi.org/10.1104/pp.103.036384 Zhang M., Takano T., Liu S., Zhang X., 2014a. Abiotic stress response in yeast and metal-binding ability of a type 2 metallothionein-like protein (PutMT2) from Puccinellia tenuiflora. Mol. Biol. Rep. 41, 5839–5849. https://doi.org/10.1007/s11033-014-3458-1 Zhang J., Zhang M., Tian S., Lu L., Shohag M.J.I., Yang X., 2014b. Metallothionein 2 (SaMT2) from Sedum alfredii Hance confers increased Cd tolerance and accumulation in yeast and tobacco, Plos One 9:e102750. https://doi.org/10.1371/journal.pone.0102750 Zhao H., Eide D., 1996. The ZRT2 gene encodes the low affinity zinc transporter in Saccharomyces cerevisiae. J. Biol. Chem. 271, 23203–23210. 10.1074/jbc.271.38.23203 Zhou J., Goldsbrough P.B., 1994. Functional homologs of fungal metallothionein genes from Arabidopsis. Plant Cell 6, 875–884. https://doi.org/10.1105/tpc.6.6.875
