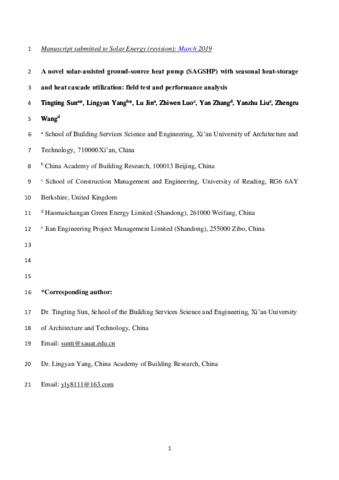

A novel solar-assisted ground-source heat pump (SAGSHP) with seasonal heat-storage and heat cascade utilization: field test and performance analysis

Sun, T., Yang, L., Jin, L., Luo, Z. ORCID: https://orcid.org/0000-0002-2082-3958, Zhang, Y., Liu, Y. and Wang, Z. (2020) A novel solar-assisted ground-source heat pump (SAGSHP) with seasonal heat-storage and heat cascade utilization: field test and performance analysis. Solar Energy, 201. pp. 362-372. ISSN 0038-092X doi: 10.1016/j.solener.2020.03.030

Abstract/Summary

To maintain the energy quality with high temperature and reduce the energy loss of seasonal heat-storage in solar-assisted ground-source heat pumps (SAGSHPs), a novel SAGSHP system with the heat-cascading of borehole heat-exchangers was designed and its field-test was conducted in this paper. The borehole heat-exchangers were divided into two regions: the core region and the peripheral region. The core region can maintain a high temperature (e.g. 45 ℃), which is much higher than in previous studies, and the heat from this region can be used directly, without the operation of a heat pump. The field-test was conducted in a community in the province Shandong, China. The results indicate that a sufficient soil-temperature gradient (the temperature is high in the core but low at the periphery) can be created and maintained. The monthly averaged borehole-wall-temperature difference between the borehole heat-exchangers (BHEs) at the core and the periphery can be as high as 30.1 ℃. This means that both cascaded heat-storage and heat-utilization can be realized. In addition, an average performance of CCOP=5.15 and SCOP=4.66 can be achieved. Compared with previous studies, despite the lower CCOP, a higher SCOP can be attained, thanks to heat cascade storage and -utilization. The novel approach described in this paper represents a viable alternative for space heating in North China.

Item Type	Article
URI	https://reading-clone.eprints-hosting.org/id/eprint/89411
Identification Number/DOI	10.1016/j.solener.2020.03.030
Refereed	Yes
Divisions	Science > School of the Built Environment > Urban Living group Science > School of the Built Environment > Energy and Environmental Engineering group
Publisher	Elsevier
