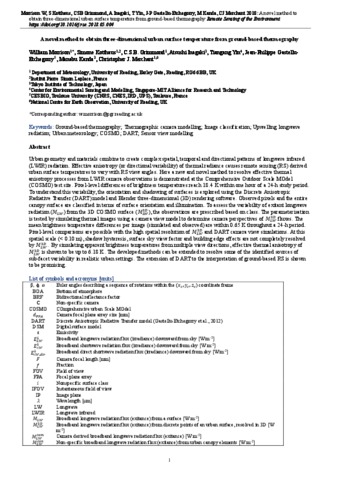

A novel method to obtain three-dimensional urban surface temperature from ground-based thermography

Morrison, W., Kotthaus, S., Grimmond, C. S. B. ORCID: https://orcid.org/0000-0002-3166-9415, Inagaki, A., Tin, T., Gastellu-Etchegorry, J.-P., Kanda, M. and Merchant, C. J. ORCID: https://orcid.org/0000-0003-4687-9850 (2018) A novel method to obtain three-dimensional urban surface temperature from ground-based thermography. Remote Sensing of Environment, 215. pp. 268-283. ISSN 0034-4257 doi: 10.1016/j.rse.2018.05.004

Abstract/Summary

Urban geometry and materials combine to create complex spatial, temporal and directional patterns of longwave infrared (LWIR) radiation. Effective anisotropy (or directional variability) of thermal radiance causes remote sensing (RS) derived urban surface temperatures to vary with RS view angles. Here a new and novel method to resolve effective thermal anisotropy processes from LWIR camera observations is demonstrated at the Comprehensive Outdoor Scale MOdel (COSMO) test site. Pixel-level differences of brightness temperatures reach 18.4 K within one hour of a 24-h study period. To understand this variability, the orientation and shadowing of surfaces is explored using the Discrete Anisotropic Radiative Transfer (DART) model and Blender three-dimensional (3D) rendering software. Observed pixels and the entire canopy surface are classified in terms of surface orientation and illumination. To assess the variability of exitant longwave radiation (M_LW) from the 3D COSMO surface (M_LW^3D), the observations are prescribed based on class. The parameterisation is tested by simulating thermal images using a camera view model to determine camera perspectives of M_LW^3D fluxes. The mean brightness temperature differences per image (simulated and observed) are within 0.65 K throughout a 24-h period. Pixel-level comparisons are possible with the high spatial resolution of M_LW^3D and DART camera view simulations. At this spatial scale (< 0.10 m), shadow hysteresis, surface sky view factor and building edge effects are not completely resolved by M_LW^3D. By simulating apparent brightness temperatures from multiple view directions, effective thermal anisotropy of M_LW^3D is shown to be up to 6.18 K. The developed methods can be extended to resolve some of the identified sources of sub-facet variability in realistic urban settings. The extension of DART to the interpretation of ground-based RS is shown to be promising.

Item Type	Article
URI	https://reading-clone.eprints-hosting.org/id/eprint/77577
Item Type	Article
Refereed	Yes
Divisions	Science > School of Mathematical, Physical and Computational Sciences > Department of Meteorology
Publisher	Elsevier
