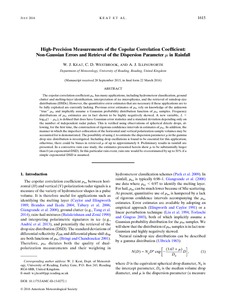

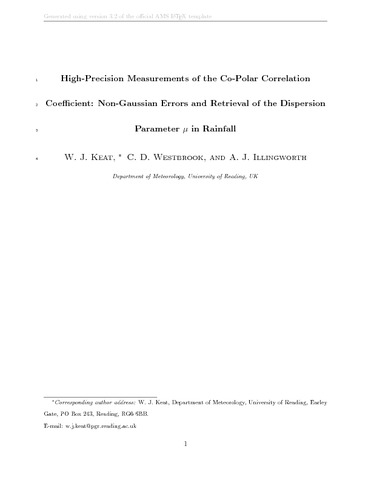

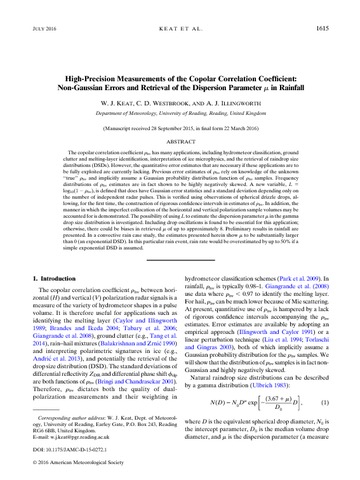

High-precision measurements of the co-polar correlation coefficient: non-Gaussian errors and retrieval of the dispersion parameter µ in rainfall

Keat, W. J., Westbrook, C. D. ORCID: https://orcid.org/0000-0002-2889-8815 and Illingworth, A. J. ORCID: https://orcid.org/0000-0002-5774-8410 (2016) High-precision measurements of the co-polar correlation coefficient: non-Gaussian errors and retrieval of the dispersion parameter µ in rainfall. Journal of Applied Meteorology and Climatology, 55 (7). pp. 1615-1632. ISSN 1558-8432 doi: 10.1175/JAMC-D-15-0272.1

Abstract/Summary

The co-polar correlation coefficient (ρhv) has many applications, including hydrometeor classification, ground clutter and melting layer identification, interpretation of ice microphysics and the retrieval of rain drop size distributions (DSDs). However, we currently lack the quantitative error estimates that are necessary if these applications are to be fully exploited. Previous error estimates of ρhv rely on knowledge of the unknown "true" ρhv and implicitly assume a Gaussian probability distribution function of ρhv samples. We show that frequency distributions of ρhv estimates are in fact highly negatively skewed. A new variable: L = -log10(1 - ρhv) is defined, which does have Gaussian error statistics, and a standard deviation depending only on the number of independent radar pulses. This is verified using observations of spherical drizzle drops, allowing, for the first time, the construction of rigorous confidence intervals in estimates of ρhv. In addition, we demonstrate how the imperfect co-location of the horizontal and vertical polarisation sample volumes may be accounted for. The possibility of using L to estimate the dispersion parameter (µ) in the gamma drop size distribution is investigated. We find that including drop oscillations is essential for this application, otherwise there could be biases in retrieved µ of up to ~8. Preliminary results in rainfall are presented. In a convective rain case study, our estimates show µ to be substantially larger than 0 (an exponential DSD). In this particular rain event, rain rate would be overestimated by up to 50% if a simple exponential DSD is assumed.

Item Type	Article
URI	https://reading-clone.eprints-hosting.org/id/eprint/62399
Item Type	Article
Refereed	Yes
Divisions	Science > School of Mathematical, Physical and Computational Sciences > Department of Meteorology
Publisher	American Meteorological Society
