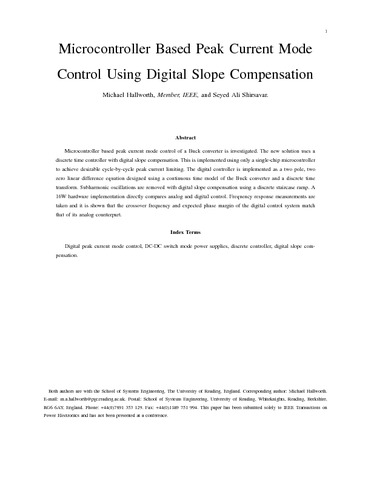

Microcontroller-based peak current mode control using digital slope compensation

Downloads

[1] C.W. Deisch, “Simple switching controlmethod changes power converter into a current source,” in Proc. Power Electron. Spec. Conf., Syracuse, N.Y., Jun. 13–15, 1978, pp. 300–306. [2] J. Chen, A. Prodic, R. Erickson, and D. Maksimovic, “Predictive digital current programmed control,” IEEE Trans. Power Electron., vol. 18, no. 1, pp. 411–419, Jan. 2003. [3] S. Chattopadhyay and S. Das, “A digital current-mode control technique for dc-dc converters,” IEEE Trans. Power Electron., vol. 21, no. 6, pp. 1718–1726, Nov. 2006. [4] D. Maksimovic, R. Zane, and R. Erickson, “Impact of digital control in power electronics,” in Proc. 16th Int. Symp. Power Semicond. Devices ICs, May 2004, pp. 13–22. [5] D. Group, Digital Power Electronics: Worldwide Forecasts, 3rd ed., Corona, CA: Darnell Group, Aug. 2009. [6] H. Peng and D. Maksimovic, “Digital current-mode controller for dc-dc converters,” in Proc. 20th Annu. IEEE Appl. Power Electron. Conf. Expo., 2005, vol. 2, pp. 899–905. [7] G. Zhou and J. Xu, “Digital average current controlled switching dc/dc converters with single-edge modulation,” IEEE Trans. Power Electron., vol. 25, no. 3, pp. 786–793, Mar. 2010. [8] Y. Qiu, X. Chen, and H. Liu, “Digital average current-mode control using current estimation and capacitor charge balance principle for dc-dc converters operating in DCM,” IEEE Trans. Power Electron., vol. 25, no. 6, pp. 1537–1545, Jun. 2010. [9] J. Xu, G. Zhou, andM. He, “Improved digital peak voltage predictive control for switching dc/dc converters,” IEEE Trans. Ind. Electron., vol. 56, no. 8, pp. 3222–3229, Aug. 2009. [10] G. Zhou and J. Xu, “Digital peak current control for switching dc/dc converters with asymmetrical dual-edge modulation,” IEEE Trans. Circuits Syst. II: Expr. Briefs, vol. 56, no. 11, pp. 815–819, Nov. 2009. [11] Y.-F. Liu, E. Meyer, and X. Liu, “Recent developments in digital control strategies for dc/dc switching power converters,” IEEE Trans. Power Electron., vol. 24, no. 11, pp. 2567–2577, Nov. 2009. [12] O. Trescases, Z. Lukic, W. T. Ng, and A. Prodic, “A low-power mixedsignal current-mode dc-dc converter using a one-bit δ σ DAC,” in Proc. 21st Annu. IEEE Appl. Power Electron. Conf. Expo., Mar. 2006, p. 5. [13] R. Ridley, “A new, continuous-time model for current-mode control [power convertors],” IEEE Trans. Power Electron., vol. 6, no. 2, pp. 271–280, Apr. 1991. [14] R. Ridley, B. Cho, and F. Lee, “Analysis and interpretation of loop gains of multiloop-controlled switching regulators [power supply circuits],” IEEE Trans. Power Electron., vol. 3, no. 4, pp. 489–498, Oct. 1988. [15] R. Ridley, “A new small-signal model for current-mode control,” Ph.D. dissertation, Bradley Dept. Electr. Eng., Virginia Polytechnic Inst. State Univ., Blacksburg, VA, 1990. [16] V. Vorperian, “Simplified analysis of PWM converters using model of PWM switch. Continuous conduction mode,” IEEE Trans. Aerosp. Electron. Syst., vol. 26, no. 3, pp. 490–496, May 1990. [17] J. Li and F. Lee, “New modeling approach and equivalent circuit representation for current-mode control,” IEEE Trans. Power Electron., vol. 25, no. 5, pp. 1218–1230, May 2010. [18] S.-P. Hsu, A. Brown, L. Rensink, and R. Middlebrook, “Modelling and analysis of switching dc-to-dc converters in constant-frequency current programmed mode,” in Proc. IEEE 10th Annu. Power Electron. Spec. Conf., 1979, pp. 284–301. [19] R. D. Middlebrook, “Topics in multiple-loop regulators and current-mode programming,” IEEE Trans. Power Electron., vol. PE-2, no. 2, pp. 109– 124, Apr. 1987. [20] J. Proakis and D. Manolakis, Digital Signal Processing. Englewood Cliffs, NJ: Pearson Prentice-Hall, 2007. [21] Y. Duan and H. Jin, “Digital controller design for switchmode power converters,” in Proc. 14th Annu. Appl. Power Electron. Conf. Expo., Mar. 1999, vol. 2, pp. 967–973. [22] S. Bibian and H. Jin, “Time delay compensation of digital control for dc switchmode power supplies using prediction techniques,” IEEE Trans. Power Electron., vol. 15, no. 5, pp. 835–842, Sep. 2000. [23] D. Sable and R. Ridley, “Comparison of performance of single-loop and current-injection control forPWMconverters that operate in both continuous and discontinuous modes of operation,” IEEE Trans. Power Electron., vol. 7, no. 1, pp. 136–142, Jan. 1992. [24] A. Peterchev and S. Sanders, “Quantization resolution and limit cycling in digitally controlled PWM converters,” in Proc. IEEE 32nd Annu. Power Electron. Spec. Conf., 2001, vol. 2, pp. 465–471. [25] H. Peng, D. Maksimovic, A. Prodic, and E. Alarcon, “Modeling of quantization effects in digitally controlled dc-dc converters,” in Proc. IEEE 35th Annu. Power Electron. Spec. Conf., 2004, vol. 6, pp. 4312–4318. [26] A. Prodic, D. Maksimovic, and R. Erickson, “Design and implementation of a digital PWM controller for a high-frequency switching dc-dc power converter,” in Proc. 27th Annu. Conf. IEEE Ind. Electron. Soc., 2001, vol. 2, pp. 893–898.
