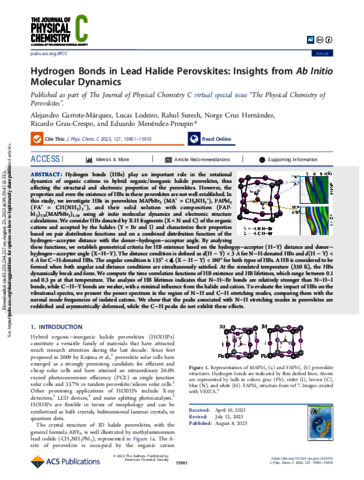

acs.jpcc.3c02376.pdf - Published Version (6MB) | Preview

Available under license: Creative Commons Attribution

[thumbnail of hbonds-manuscript (1).pdf]

hbonds-manuscript (1).pdf - Accepted Version (1MB)

Restricted to Repository staff only

Tools

Garrote-Marquez, A., Lodeiro, L., Suresh, R., Cruz Hernandez, N., Grau-Crespo, R. ORCID: https://orcid.org/0000-0001-8845-1719 and Menendez-Proupin, E. (2023) Hydrogen bonds in lead halide perovskites: insights from ab initio molecular dynamics. Journal of Physical Chemistry C, 127 (32). pp. 15901-15910. ISSN 1932-7447 doi: 10.1021/acs.jpcc.3c02376

Abstract/Summary

Hydrogen bonds (HBs) play an important role in the rotational dynamics of organic cations in hybrid organic/inorganic halide perovskites, thus affecting the structural and electronic properties of the perovskites. However, the properties and even the existence of HBs in these perovskites are not well established. In this study, we investigate HBs in perovskites MAPbBr3 (MA+=CH3NH3+), FAPbI3 (FA+= CH(NH2)2+), and their solid solution with composition (FAPbI3)7/8(MAPbBr3)1/8, using ab initio molecular dynamics and electronic structure calculations. We consider HBs donated by X-H fragments (X=N, C) of the organic cations and accepted by the halides (Y=Br, I), and characterize their properties based on pair distribution functions and on a combined distribution function of hydrogen-acceptor distance with donor-hydrogen-acceptor angle. By analyzing these functions, we establish geometrical criteria for HB existence based on hydrogen-acceptor (H—Y) distance and donor-hydrogen-acceptor angle (X—H—Y). The distance condition is defined as d(H-Y)<3 Å, for N-H-donated HBs, and d(H-Y)<4 Å for C-H-donated HBs. The angular condition is 135°<∡(X-H-Y)<180° for both types of HBs. A HB is considered to be formed when both angular and distance conditions are simultaneously satisfied. At the simulated temperature (350 K), the HBs dynamically break and form. We compute time correlation functions of HB existence and HB lifetimes, which range between 0.1 and 0.3 ps at that temperature. The analysis of HB lifetimes indicates that N-H—Br bonds are relatively stronger than N-H—I bonds, while C-H—Y bonds are weaker, with minimal influence from the halide and cation. To evaluate the impact of HBs on vibrational spectra, we present the power spectrum in the region of N-H and C-H stretching modes, comparing them with the normal mode frequencies of isolated cations. We show that the peaks associated with N-H stretching modes in perovskites are redshifted and asymmetrically deformed, while the C-H peaks do not exhibit these effects.

Altmetric Badge

Item Type	Article
URI	https://reading-clone.eprints-hosting.org/id/eprint/112803
Item Type	Article
Refereed	Yes
Divisions	Life Sciences > School of Chemistry, Food and Pharmacy > Department of Chemistry
Publisher	American Chemical Society
Download/View statistics	View download statistics for this item

Download Statistics

Downloads

Downloads per month over past year

Deposit Details

Date Deposited:	02 Aug 2023 14:41	Date item deposited into CentAUR
Last Modified:	09 Jun 2024 03:16	Date item last modified

References

(1) Kojima, A.; Teshima, K.; Shirai, Y.; Miyasaka, T. Organometal Halide Perovskites as Visible-Light Sensitizers for Photovoltaic Cells. J. Am. Chem. Soc. 2009, 131, 6050-6051. DOI: 10.1021/ja809598r. (2) NREL chart on record cell efficiencies. https://www.nrel.gov/pv/cell-efficiency.html (accessed June 8, 2023). (3) Wang, Y.; Lou, H.; Yue, C.-Y.; Lei, X.-W. Applications of halide perovskites in X-ray detection and imaging. CrystEngComm 2022, 24, 2201-2212. DOI: 10.1039/D1CE01575C. (4) Kim, H.; Zhao, L.; Price, J. S.; Grede, A. J.; Roh, K.; Brigeman, A. N.; Lopez, M.; Rand, B. P.; Giebink, N. C. Hybrid perovskite light emitting diodes under intense electrical excitation. Nat. Commun. 2018, 9, 4893. DOI: 10.1038/s41467-018-07383-8. (5) Huang, H.; Pradhan, B.; Hofkens, J.; Roeffaers, M. B.; Steele, J. A. Solar-driven metal halide perovskite photocatalysis: design, stability, and performance. ACS Energy Lett. 2020, 5, 1107-1123. DOI: 10.1021/acsenergylett.0c00058. (6) Ono, L. K.; Juarez-Perez, E. J.; Qi, Y. Progress on Perovskite Materials and Solar Cells with Mixed Cations and Halide Anions. ACS Appl. Mater. Interfaces 2017, 9, 30197-30246. DOI: 10.1021/acsami.7b06001. (7) Walsh, A.; elds22; Brivio, F.; Frost, J. M. WMD-group/hybrid-perovskites: Collection 1; Zenodo, April 16, 2019, DOI: 10.5281/zenodo.2641358. (8) Momma, K.; Izumi, F. VESTA 3 for three-dimensional visualization of crystal, volumetric and morphology data. J. Appl. Crystallogr. 2011, 44, 1272-1276. DOI: doi:10.1107/S0021889811038970. (9) Lee, J.-W.; Tan, S.; Seok, S. I.; Yang, Y.; Park, N.-G. Rethinking the A cation in halide perovskites. Science 2022, 375, eabj1186. DOI: doi:10.1126/science.abj1186. (10) Stoumpos, C. C.; Malliakas, C. D.; Kanatzidis, M. G. Semiconducting Tin and Lead Iodide Perovskites with Organic Cations: Phase Transitions, High Mobilities, and Near-Infrared Photoluminescent Properties. Inorg. Chem. 2013, 52, 9019-9038. DOI: 10.1021/ic401215x. (11) Cheng, Z.; Lin, J. Layered organic–inorganic hybrid perovskites: structure, optical properties, film preparation, patterning and templating engineering. CrystEngComm 2010, 12, 2646-2662, 10.1039/C001929A. DOI: 10.1039/C001929A. (12) Francisco-López, A.; Charles, B.; Alonso, M. I.; Garriga, M.; Campoy-Quiles, M.; Weller, M. T.; Goñi, A. R. Phase Diagram of Methylammonium/Formamidinium Lead Iodide Perovskite Solid Solutions from Temperature-Dependent Photoluminescence and Raman Spectroscopies. J. Phys. Chem. C 2020, 124, 3448-3458. DOI: 10.1021/acs.jpcc.9b10185. (13) Onoda-Yamamuro, N.; Matsuo, T.; Suga, H. Calorimetric and IR spectroscopic studies of phase transitions in methylammonium trihalogenoplumbates (II)†. J. Phys. Chem. Solids 1990, 51, 1383-1395. DOI: https://doi.org/10.1016/0022-3697(90)90021-7. (14) Senno, M.; Tinte, S. Mixed formamidinium–methylammonium lead iodide perovskite from first-principles: hydrogen-bonding impact on the electronic properties. Phys. Chem. Chem. Phys. 2021, 23, 7376-7385. DOI: 10.1039/D0CP06713J. (15) Carignano, M. A.; Kachmar, A.; Hutter, J. Thermal Effects on CH3NH3PbI3 Perovskite from Ab Initio Molecular Dynamics Simulations. J. Phys. Chem. C 2015, 119, 8991-8997. DOI: 10.1021/jp510568n. (16) Huang, B.; Liu, Z.; Wu, C.; Zhang, Y.; Zhao, J.; Wang, X.; Li, J. Polar or nonpolar? That is not the question for perovskite solar cells. National Science Review 2021, 8. DOI: 10.1093/nsr/nwab094. (17) Montero-Alejo, A. L.; Menéndez-Proupin, E.; Hidalgo-Rojas, D.; Palacios, P.; Wahnón, P.; Conesa, J. C. Modeling of Thermal Effect on the Electronic Properties of Photovoltaic Perovskite CH3NH3PbI3: The Case of Tetragonal Phase. J. Phys. Chem. C 2016, 120, 7976-7986. DOI: 10.1021/acs.jpcc.6b01013. (18) Lodeiro, L.; Barría-Cáceres, F.; Jiménez, K.; Contreras, R.; Montero-Alejo, A. L.; Menéndez-Proupin, E. Methodological Issues in First-Principle Calculations of CH3NH3PbI3 Perovskite Surfaces: Quantum Confinement and Thermal Motion. ACS Omega 2020, 5, 29477-29491. DOI: 10.1021/acsomega.0c04420. (19) Mosconi, E.; De Angelis, F. Mobile Ions in Organohalide Perovskites: Interplay of Electronic Structure and Dynamics. ACS Energy Lett. 2016, 1, 182-188. DOI: 10.1021/acsenergylett.6b00108. (20) Saleh, G.; Biffi, G.; Di Stasio, F.; Martín-García, B.; Abdelhady, A. L.; Manna, L.; Krahne, R.; Artyukhin, S. Methylammonium Governs Structural and Optical Properties of Hybrid Lead Halide Perovskites through Dynamic Hydrogen Bonding. Chem. Mater. 2021, 33, 8524-8533. DOI: 10.1021/acs.chemmater.1c03035. (21) Varadwaj, P. R.; Varadwaj, A.; Marques, H. M.; Yamashita, K. Significance of hydrogen bonding and other noncovalent interactions in determining octahedral tilting in the CH3NH3PbI3 hybrid organic-inorganic halide perovskite solar cell semiconductor. Sci. Rep. 2019, 9, 50. DOI: 10.1038/s41598-018-36218-1. (22) Mitzi, D. B. Templating and structural engineering in organic–inorganic perovskites. J. Chem. Soc., Dalton Trans. 2001, 1-12, 10.1039/B007070J. DOI: 10.1039/B007070J. (23) Maity, S.; Verma, S.; Ramaniah, L. M.; Srinivasan, V. Deciphering the Nature of Temperature-Induced Phases of MAPbBr3 by Ab Initio Molecular Dynamics. Chem. Mater. 2022, 34, 10459-10469. DOI: 10.1021/acs.chemmater.2c02453. (24) Millikan, R. A. On the Elementary Electrical Charge and the Avogadro Constant. Phys. Rev. 1913, 2, 109-143. DOI: 10.1103/PhysRev.2.109. (25) Svane, K. L.; Forse, A. C.; Grey, C. P.; Kieslich, G.; Cheetham, A. K.; Walsh, A.; Butler, K. T. How Strong Is the Hydrogen Bond in Hybrid Perovskites? J. Phys. Chem. Lett. 2017, 8, 6154-6159. DOI: 10.1021/acs.jpclett.7b03106. (26) Ibaceta-Jaña, J.; Chugh, M.; Novikov, A. S.; Mirhosseini, H.; Kühne, T. D.; Szyszka, B.; Wagner, M. R.; Muydinov, R. Do Lead Halide Hybrid Perovskites Have Hydrogen Bonds? J. Phys. Chem. C 2022, 126, 16215-16226. DOI: 10.1021/acs.jpcc.2c02984. (27) Arunan, E.; Desiraju, G. R.; Klein, R. A.; Sadlej, J.; Scheiner, S.; Alkorta, I.; Clary, D. C.; Crabtree, R. H.; Dannenberg, J. J.; Hobza, P.; et al. Definition of the hydrogen bond (IUPAC Recommendations 2011). Pure Appl. Chem. 2011, 83, 1637-1641. DOI: doi:10.1351/PAC-REC-10-01-02. (28) Arunan, E.; Desiraju, G. R.; Klein, R. A.; Sadlej, J.; Scheiner, S.; Alkorta, I.; Clary, D. C.; Crabtree, R. H.; Dannenberg, J. J.; Hobza, P.; et al. Defining the hydrogen bond: An account (IUPAC Technical Report). Pure Appl. Chem. 2011, 83, 1619-1636. DOI: doi:10.1351/PAC-REP-10-01-01. (29) Johnson, E. R.; Keinan, S.; Mori-Sánchez, P.; Contreras-García, J.; Cohen, A. J.; Yang, W. Revealing Noncovalent Interactions. J. Am. Chem. Soc. 2010, 132, 6498-6506. DOI: 10.1021/ja100936w. (30) Lee, J. H.; Lee, J.-H.; Kong, E.-H.; Jang, H. M. The nature of hydrogen-bonding interaction in the prototypic hybrid halide perovskite, tetragonal CH3NH3PbI3. Sci. Rep. 2016, 6, 21687. DOI: 10.1038/srep21687. (31) Menéndez-Proupin, E.; Grover, S.; Montero-Alejo, A. L.; Midgley, S. D.; Butler, K. T.; Grau-Crespo, R. Mixed-anion mixed-cation perovskite (FAPbI3)0.875(MAPbBr3)0.125: an ab initio molecular dynamics study. J. Mater. Chem. A 2022, 10, 9592-9603. DOI: 10.1039/D1TA10860C. (32) Menéndez-Proupin, E.; Grover, S.; Montero-Alejo, A. L.; Midgley, S. D.; Butler, K. T.; Grau-Crespo, R. Data supporting Mixed-anion mixed-cation perovskite (FAPbI3)0.875(MAPbBr3)0.125: an ab initio molecular dynamics study [Data set]; Zenodo, Nov 19, 2021, DOI: 10.5281/zenodo.8006481. (33) Kühne, T. D.; Iannuzzi, M.; Del Ben, M.; Rybkin, V. V.; Seewald, P.; Stein, F.; Laino, T.; Khaliullin, R. Z.; Schütt, O.; Schiffmann, F.; et al. CP2K: An electronic structure and molecular dynamics software package - Quickstep: Efficient and accurate electronic structure calculations. J. Chem. Phys. 2020, 152, 194103. DOI: 10.1063/5.0007045. (34) Perdew, J. P.; Burke, K.; Ernzerhof, M. Generalized Gradient Approximation Made Simple. Phys. Rev. Lett. 1996, 77, 3865-3868. DOI: 10.1103/PhysRevLett.77.3865. (35) Grimme, S.; Antony, J.; Ehrlich, S.; Krieg, H. A consistent and accurate ab initio parametrization of density functional dispersion correction (DFT-D) for the 94 elements H-Pu. J. Chem. Phys. 2010, 132, 154104. DOI: 10.1063/1.3382344. (36) VandeVondele, J.; Krack, M.; Mohamed, F.; Parrinello, M.; Chassaing, T.; Hutter, J. Quickstep: Fast and accurate density functional calculations using a mixed Gaussian and plane waves approach. Comput. Phys. Commun. 2005, 167, 103-128. DOI: https://doi.org/10.1016/j.cpc.2004.12.014. (37) VandeVondele, J.; Hutter, J. Gaussian basis sets for accurate calculations on molecular systems in gas and condensed phases. J. Chem. Phys. 2007, 127, 114105. DOI: 10.1063/1.2770708. (38) Goedecker, S.; Teter, M.; Hutter, J. Separable dual-space Gaussian pseudopotentials. Phys. Rev. B: Condens. Matter 1996, 54, 1703-1710. DOI: 10.1103/PhysRevB.54.1703. (39) Hartwigsen, C.; Goedecker, S.; Hutter, J. Relativistic separable dual-space Gaussian pseudopotentials from H to Rn. Phys. Rev. B: Condens. Matter 1998, 58, 3641-3662. DOI: 10.1103/PhysRevB.58.3641. (40) Krack, M. Pseudopotentials for H to Kr optimized for gradient-corrected exchange-correlation functionals. Theor. Chem. Acc. 2005, 114, 145-152. DOI: 10.1007/s00214-005-0655-y. (41) Brehm, M.; Thomas, M.; Gehrke, S.; Kirchner, B. TRAVIS—A free analyzer for trajectories from molecular simulation. J. Chem. Phys. 2020, 152, 164105. DOI: 10.1063/5.0005078. (42) Humphrey, W.; Dalke, A.; Schulten, K. VMD: Visual molecular dynamics. J. Mol. Graphics 1996, 14, 33-38. DOI: 10.1016/0263-7855(96)00018-5. (43) Alder, R. W.; Blake, M. E.; Oliva, J. M. Diaminocarbenes; Calculation of Barriers to Rotation about Ccarbene−N Bonds, Barriers to Dimerization, Proton Affinities, and 13C NMR Shifts. J. Phys. Chem. A 1999, 103, 11200-11211. DOI: 10.1021/jp9934228. (44) Teunissen, J. L.; Da Pieve, F. Molecular Bond Engineering and Feature Learning for the Design of Hybrid Organic–Inorganic Perovskite Solar Cells with Strong Noncovalent Halogen–Cation Interactions. J. Phys. Chem. C 2021, 125, 25316-25326. DOI: 10.1021/acs.jpcc.1c07295. (45) Brehm, M.; Sebastiani, D. Simulating structure and dynamics in small droplets of 1-ethyl-3-methylimidazolium acetate. J. Chem. Phys. 2018, 148, 193802. DOI: 10.1063/1.5010342. (46) Wallace, W. E. Infrared Spectra: Phenol Condensed Phase Spectrum: NIST Mass Spectrometry Data Center, NIST Chemistry WebBook, NIST Standard Reference Database Number 69, Eds. P.J. Linstrom and W.G. Mallard. National Institute of Standards and Technology: Gaithersburg MD, 20899, 2018. https://webbook.nist.gov/cgi/cbook.cgi?ID=C108952&Units=SI&Type=IR-SPEC&Index=1 (accessed 2023 February 1). (47) Wallace, W. E. Infrared Spectra: Phenol Gas phase spectrum, NIST Chemistry WebBook, NIST Standard Reference Database Number 69, Eds. P. J. Linstrom and W. G. Mallard. National Institute of Standards and Technology: Gaithersburg MD, 20899, 2018. https://webbook.nist.gov/cgi/cbook.cgi?ID=C108952&Type=IR-SPEC&Index=0 (accessed 2023 February 1). (48) Thomas, M. Theoretical Modeling of Vibrational Spectra in the Liquid Phase; Springer Cham, 2016. DOI: 10.1007/978-3-319-49628-3. (49) Frisch, M. J.; Trucks, G. W.; Schlegel, H. B.; Scuseria, G. E.; Robb, M. A.; Cheeseman, J. R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G. A.; et al. Gaussian 09 Rev. B.01; Wallingford, CT, 2009. (50) Mozur, E. M.; Neilson, J. R. Cation Dynamics in Hybrid Halide Perovskites. Annu. Rev. Mater. Res. 2021, 51, 269-291. DOI: 10.1146/annurev-matsci-080819-012808. (51) Selig, O.; Sadhanala, A.; Müller, C.; Lovrincic, R.; Chen, Z.; Rezus, Y. L. A.; Frost, J. M.; Jansen, T. L. C.; Bakulin, A. A. Organic Cation Rotation and Immobilization in Pure and Mixed Methylammonium Lead-Halide Perovskites. J. Am. Chem. Soc. 2017, 139, 4068-4074. DOI: 10.1021/jacs.6b12239.
